Solar Submersible Pump and Controller
Models: 3HP, 5HP, 7.5HP and 10HP DC

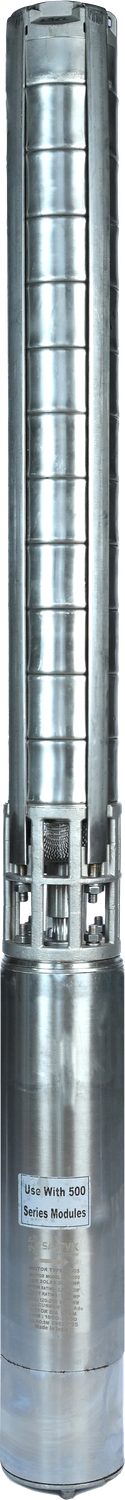

Saatvik solar submersible pump has a stainless steel SS-304 pump. This ensures long life and high reliability against dust, sand and abrasive elements. The pump elements are driven by a “DC motor” filled with water. The motor is made from stainless steel 304 shell and sealed for life. High efficiency BLDC/PMSM motors are used. The motor is driven by a controller which has in inbuilt MPPT (Maximum power point tracker), dry running protection and overheating protection.
Application

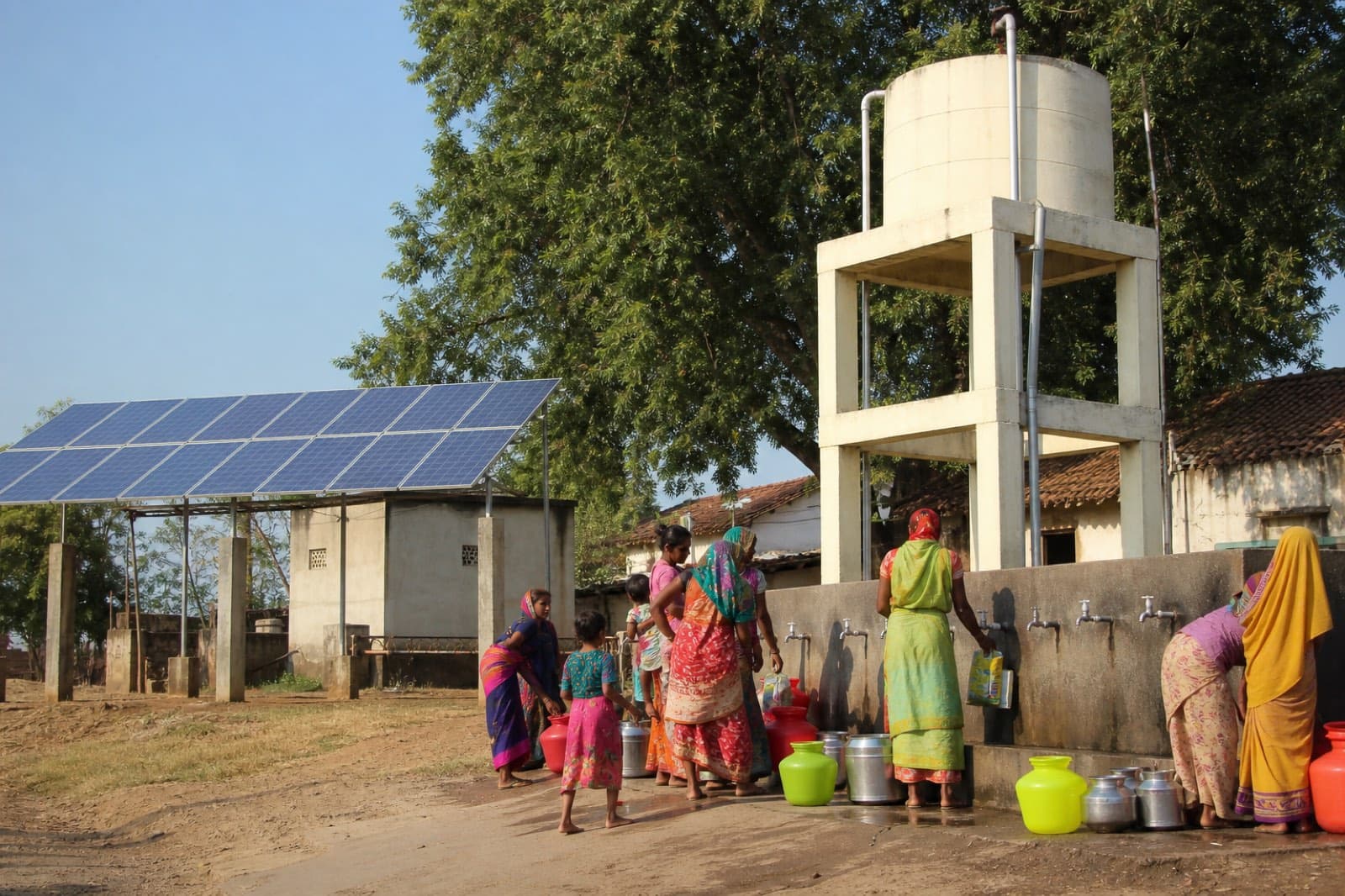

Drinking water supply

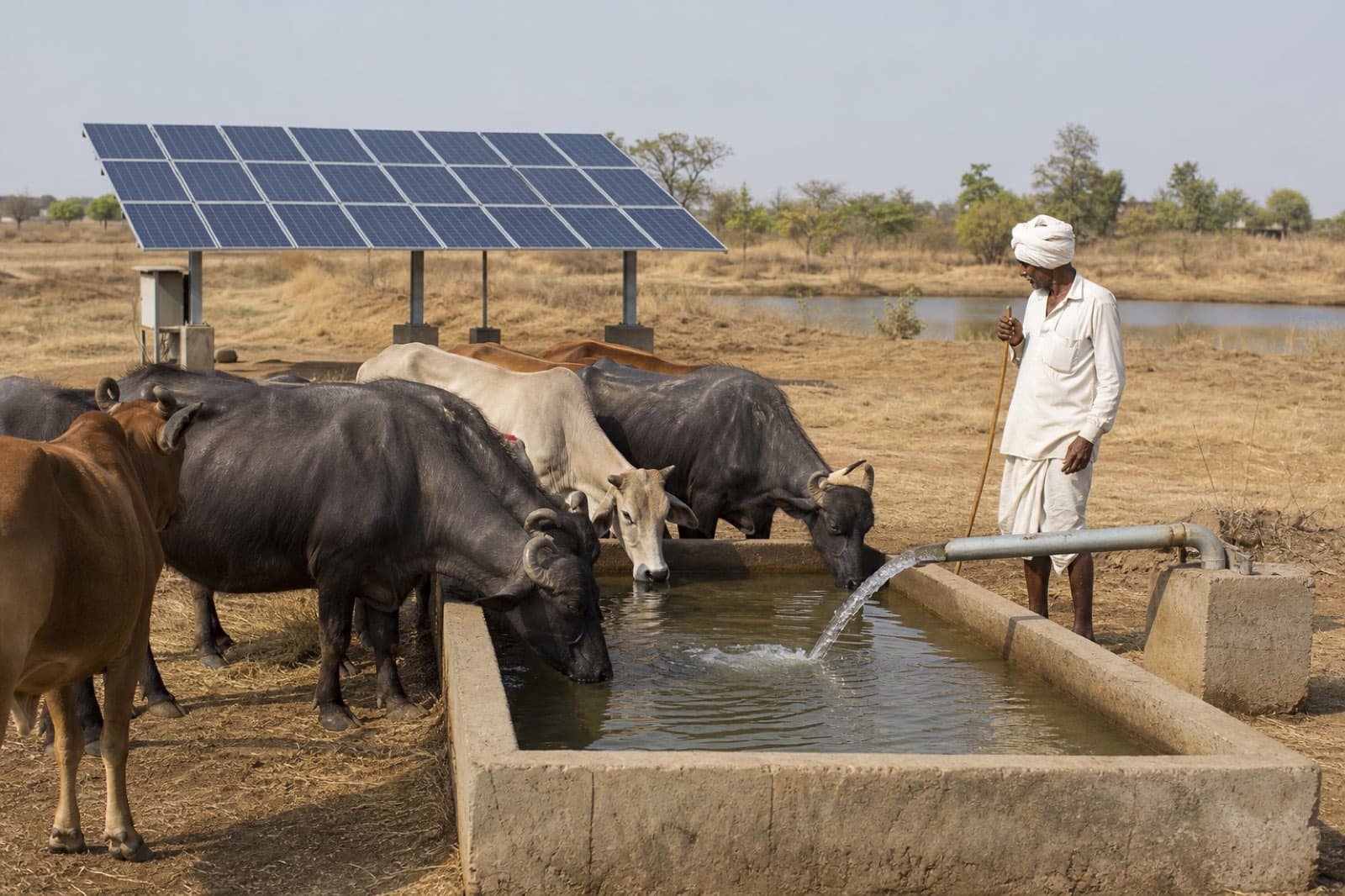

Livestock watering
Pond Management
Village water supply

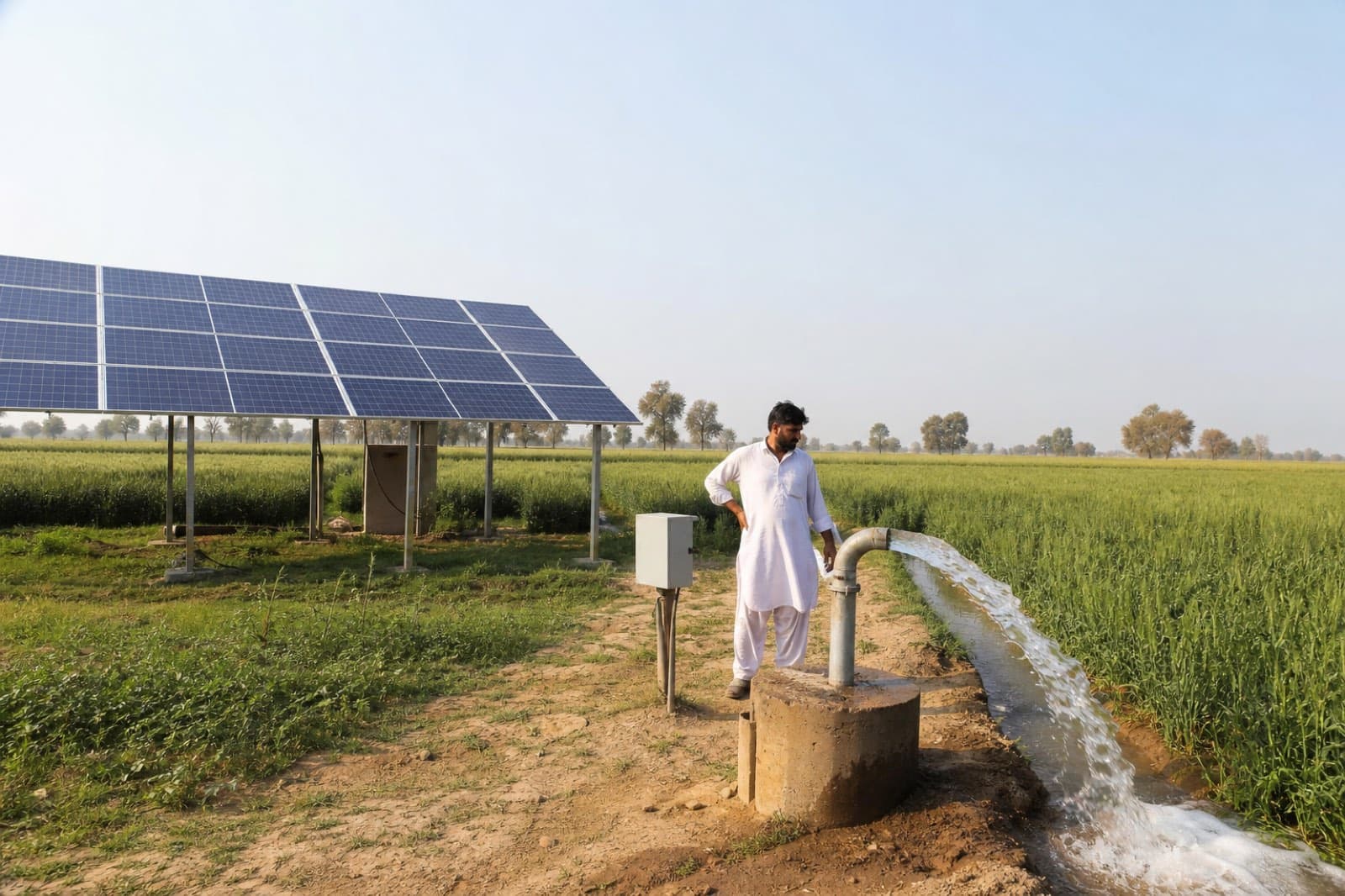

Agriculture

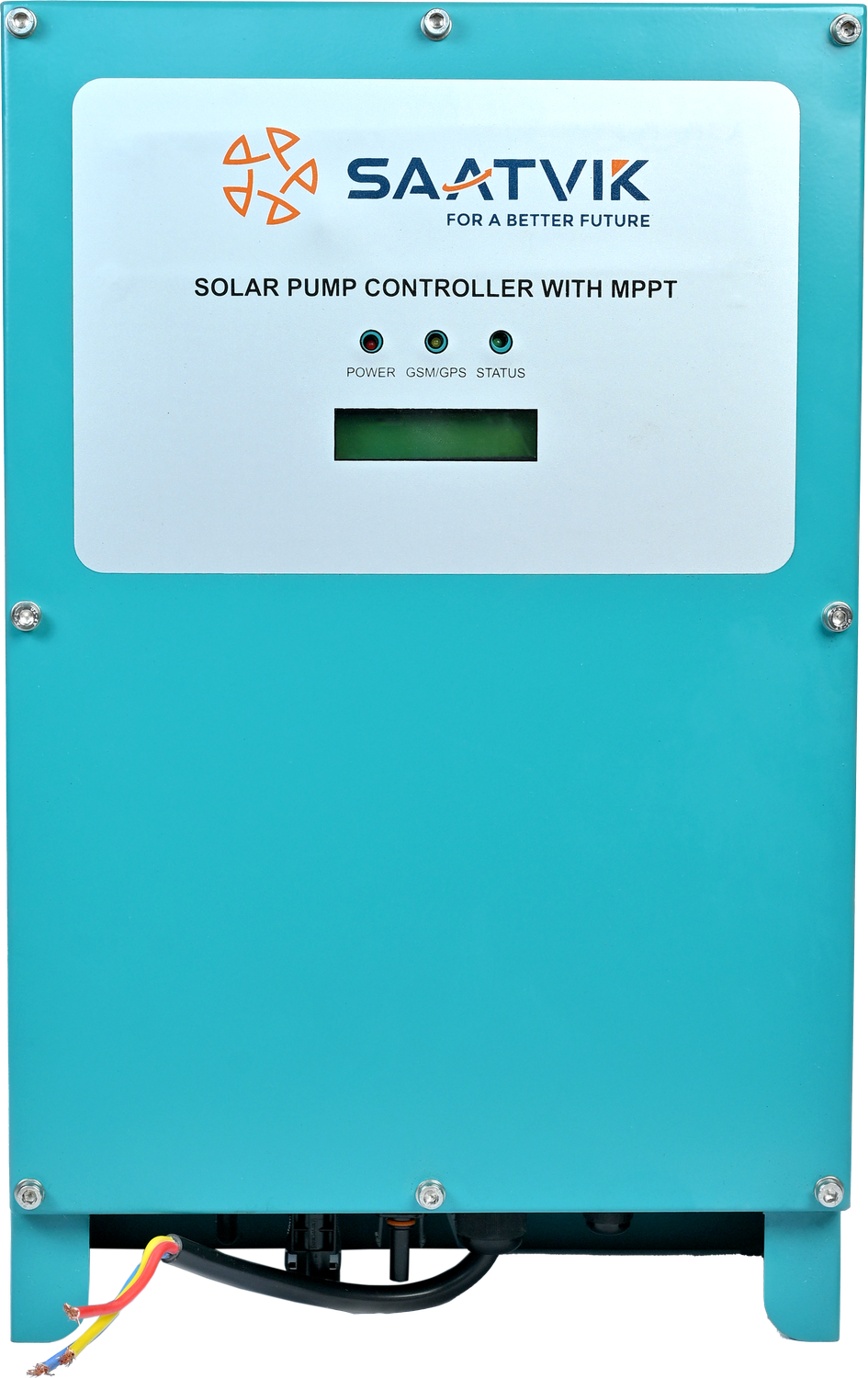

Features of Controller
- Fully enclosed with IP 65 protection.
- Tested as per IEC 60068-2-6:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005 for environment and IEC 61683 : 1999 for efficiency.
- Multifault diagnosis indications.
- Integrated MPPT (Maximum Power Point Tracking)
- Option of “Tank Full” and “Source Empty” sensor for auto start and auto stop.
- Controller is as per IS 16221 Part-2
- Protection against open circuit, accidental short circuit (2 min, max) reverse polarity, under voltage & dry run.
- With Remote Monitoring System (RMS) integrated into the controller capable of remotely switching ON/Off the pumpset and monitoring of all parameters on mobile app or web browser.
