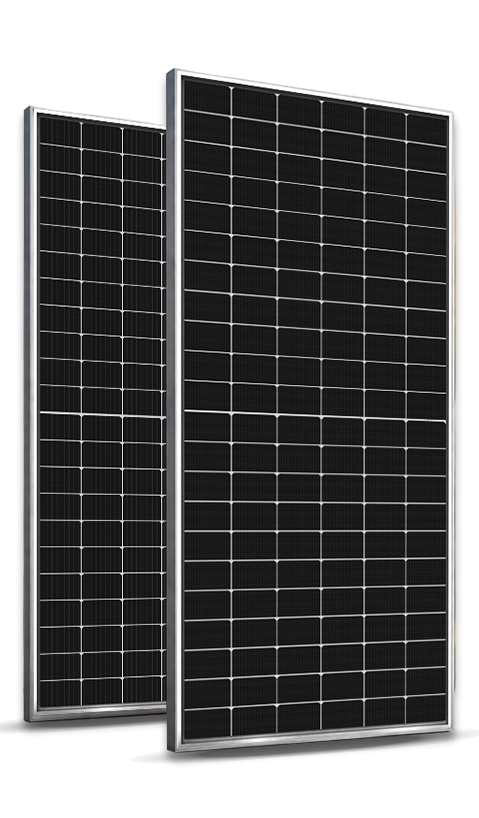

N TOPcon Bifacial (G12R)
Introducing our N-TOPCon G12R Module, designed for higher power output and unmatched efficiency compared to P-Type Modules. Our N-TOPCon Solar PV Modules are built using the most advanced next-generation N-type cell technology and have seamless compatibility with standard racking and inverters. These panels are optimized with a G12R wafer size, ideal for utility-scale and high-output commercial installations.
Key Features:
Higher Module Efficiency:
Engineered with advanced N-Type TOPCon technology, it delivers exceptional efficiency up to 23.12% by capturing sunlight from both sides, even in low-light and high-temperature conditions.
Superior Temperature Coefficient:
Our N-Type TOPCon Module offers a lower temperature coefficient of (-0.30%/°C) in comparison to P-Type (-0.36%/°C). It ensures maximal energy production even in extreme weather conditions and torrid regions like India, the Middle East, and Southeast Asia.
Prolonged Lifespan & PID Resistance:
Designed to perform in harsh climate conditions, our N-TOPCon G12R modules are resistant to Potential Induced Degradation (PID), offering high durability. With an annual degradation rate of <0.40% and a 30-year performance warranty, it ensures a refined levelized cost of electricity (LCOE).
Enhanced Power Generation
Saatvik’s N-TOPCon G12R solar modules are available in a bifacial glass-to-glass configuration, generating power from both sides. It can yield 10-30% more power when compared with P-type modules.
Mechanical & Electrical Specifications
- Module Type: Bifacial N-TOPCon G12R with 132 cells (Dual Glass)
- Front Cover: Infused with 2.00 MM tempered glass for extended lifespan.
- Junction Box: Rated IP68, containing 3 separate bypass diodes for utmost safety and performance.
- Efficiency: Enabled with beyond-the-mark efficiency up to the bar of 23.12% ideal for installation in every ecosystem.
- Operating Temperature: Befitting of performing in the range of -40°C to +85°C.
- Connectors: Come with MC4-compatible connectors, escalating the flexibility and connectivity in installation.
- Frame Material: Silver Anodized Aluminium profile for preventing corrosion..
- Maximum System Voltage: 1500 VDC
- Dimensions: 2382x1134x35 mm
- Safety Class: Class-II
- Weight: 33.5 Kgs
- Temperature Coefficient of Pmax: -0.30%/°C, delivers optimized output under various temperature environments.
Durability & Warranty
- Certifications & Standards: Our N-TOPCon G12R modules are compliant with global standards like IEC 61215, IEC 61701, IEC 61730 and other's certifications, ensuring premium quality and intact safety.
-
Warranty: Allocated the product warranty of 12 years and performance warranty of 30 years, along with power degradation of less than 1.0% in the first year and less than 0.40%/year in the next 2 to 30 years. T&C apply.
- Extended Wind and Snow Load Resistance: Saatvik G12R panels are certified enough to tolerate the wind load up to 2400 Pascal and snow load up to 5400 Pascal, providing robust performance under harsh climatic conditions.
-
Excellent Performance in Low Light: Superior output comes from our N-TOPCon G12R modules in low irradiance when installed even in low-light environments because of our advanced cell technology embedded in them.
Gain higher efficiency, unparalleled durability, and longer lifespan with Saatvik N-Type TOPCon G12R modules. With futuristic technology and a solid warranty, it stands out as a reliable solution in the realm of sustainable power. Whether you need panels for high-utility or for a commercial project, our N-TOPCon G12R modules will be a trusted companion for your renewable journey.
