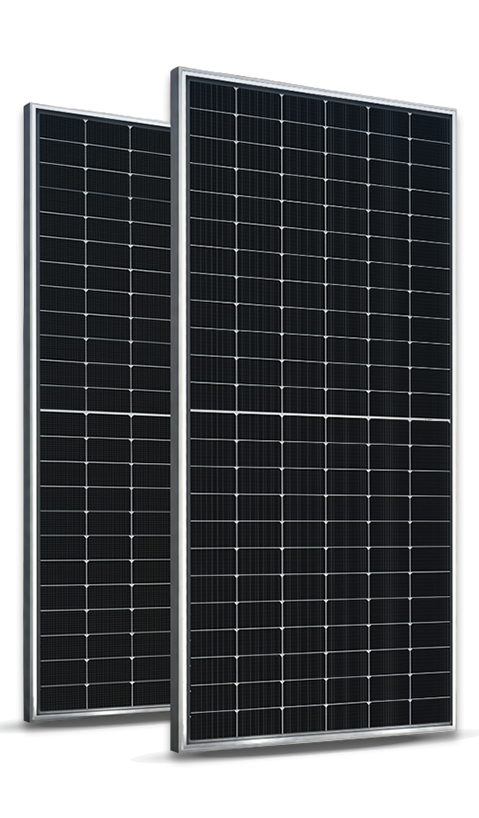

Monoperc Monofacial Module – (G2WB)
The Saatvik Solar Monoperc Monofacial module series delivers top-tier performance for a range of solar power applications. Built with advanced technology and engineered for high efficiency, these modules cater to both residential and commercial solar installations, offering superior power output and durability.
Key Features:
High Efficiency:
Maximizing power generation by up to 21.2% module conversion efficiency.
Advanced Technology:
Features 10 MBB (Multi Bus Bar) technology and half-cut cells for improved energy yield.
Excellent Weak Light Performance:
Performs well even under weak light conditions, ensuring reliable energy production in challenging environments.
Rigorous Testing:
Our Mono Perc modules undergo stringent wind and snow load tests, certified to withstand wind loads of up to 2400 Pascal and snow loads of up to 5400 Pascal.
Harsh Environment Reliability:
These modules are designed for durability and high performance in harsh conditions like deserts, farms, and coastlines.
Certifications:
Fully compliant with global standards, including IEC, UL, TUV, ISO, CE, and BIS. These modules are also listed in the MNRE-approved ALMM list, making them eligible for DCR category projects in India.
Mechanical & Electrical Specifications
- Module Type: Monocrystalline, 144 cells, Half-Cut PERC
- Dimensions: 2278x1134x35 mm
- Weight: 28 kg
- Front Cover: 3.2 mm Tempered Glass
- Backsheet: Composite Film
- Frame Material: Silver Anodized Aluminum Profile
- Junction Box: IP68 rated with 3 bypass diodes
- Connectors: MC4 Compatible
- Cable Length: 350 mm, 4 mm²
- Standard Packaging: 31 pieces per pallet, 620 pieces per 40-foot HQ container
Durability & Warranty
- Extended Wind and Snow Load Testing: Certified to endure wind loads up to 2400 Pa and snow loads up to 5400 Pa.
- Temperature Resilience: Operational from -40°C to +85°C, these modules are designed for diverse climates.
- Certifications: Compliant with IEC, UL, and IS standards, including IEC 61215, IEC 61730, IEC 61701, and several others.
- Warranty: Backed by a 12-year product warranty and a performance warranty that guarantees less than 2.0% power degradation in the first year and a maximum of 0.55% per year from the 2nd to the 25th year.
